What Are the Components of Furniture Casters?

Furniture casters are essential components in modern furniture design, enhancing mobility and convenience. Understanding the different parts of furniture casters helps us better maintain and select the appropriate casters. This article provides a detailed overview of the main components of furniture casters.

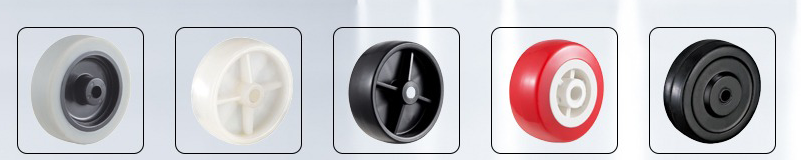

1. Caster Wheel

Characteristics:

• Varied Materials: Caster wheels are typically made from materials such as plastic, rubber, polyurethane, or metal, each offering different performance characteristics suitable for various surfaces and load requirements.
• Design: Wheels can be solid or pneumatic; solid wheels are suitable for smooth surfaces, while pneumatic wheels are better for rougher terrains.

Function:

• The wheel is the primary component of the caster, making contact with the floor and supporting the weight of the furniture while providing rolling functionality.

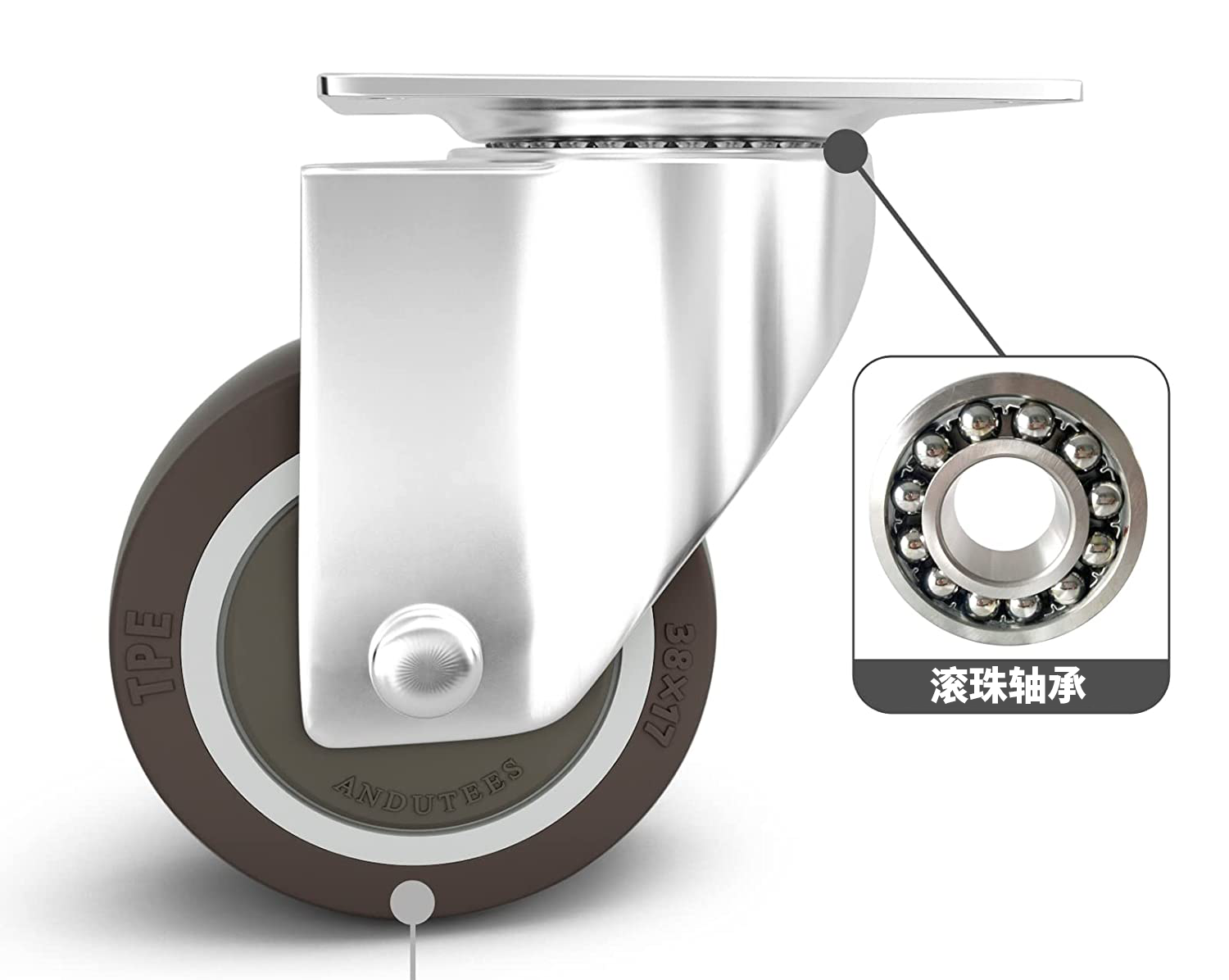

2. Caster Bearing

Characteristics:

• Material: Bearings are generally composed of steel balls, rollers, or sliders, with housings made of metal or plastic.
• Types: Common bearing types include ball bearings, roller bearings, and plain bearings.

Function:

• Bearings enable smooth rotation and movement of the caster by reducing friction. High-quality bearings can significantly decrease rolling resistance and noise.

3. Caster Mount

Characteristics:

• Mounting Types: Mounts come in various types, such as plate mounts, stem mounts, and threaded mounts.
• Material: Typically made from steel, aluminum, or plastic, mounts offer strength and durability.

Function:

• The mount secures the caster to the bottom of the furniture, ensuring stability and support for the load. The design of the mount needs to accommodate the installation method and the furniture’s structure.

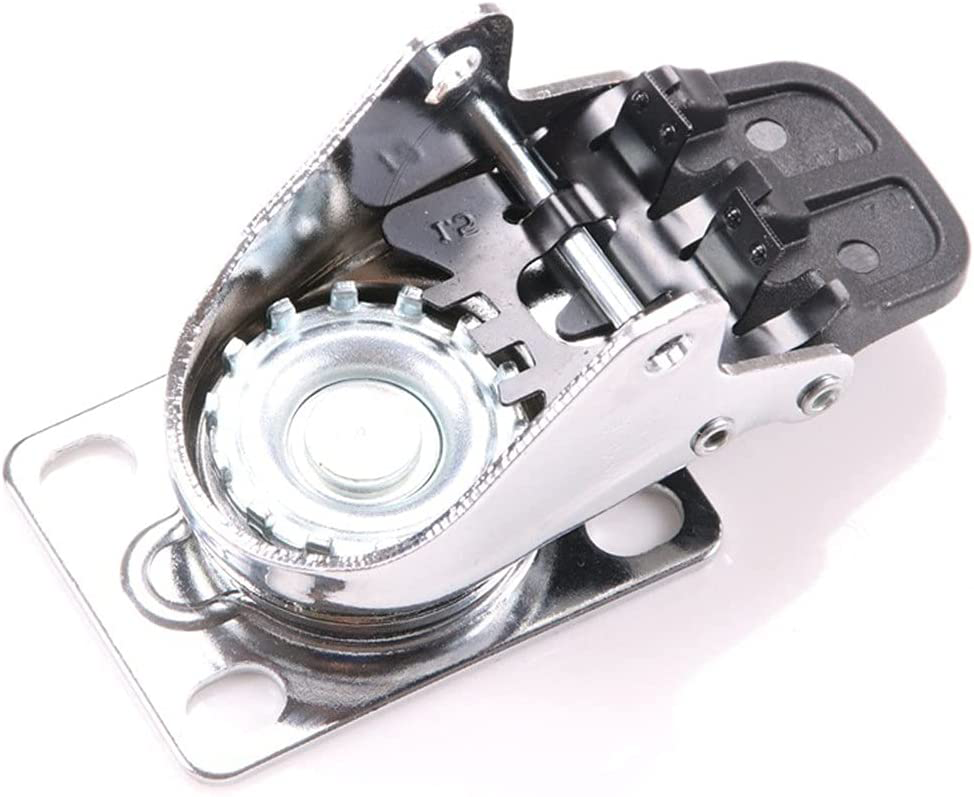

4. Caster Swivel Mechanism

Characteristics:

• Structure: The swivel mechanism usually consists of a central axle, a swivel bracket, and ball bearings.
• Operation: Includes fixed, full-swivel, and partial-swivel types.

Function:

• The swivel mechanism allows the caster to rotate freely on the horizontal plane, providing flexibility in moving the furniture in all directions. High-quality swivel mechanisms offer smoother steering.

5. Caster Brake

Characteristics:

• Types: Brake mechanisms come in various forms, including pedal, rotational, and lever types.
• Material: Typically made from metal and plastic.

Function:

• The brake mechanism locks the caster in place when needed, preventing movement and providing additional stability. The design of the brake needs to ensure safe and reliable operation during application and release.

6. Caster Housing

Characteristics:

• Material: Housings are usually made from plastic or metal and serve to protect internal components.
• Design: The housing design may include openings or covers for maintenance purposes.

Function:

• The housing protects the bearings and swivel mechanism from external debris while maintaining the overall structural integrity of the caster.

Summary

Furniture casters consist of the wheel, bearing, mount, swivel mechanism, brake, and housing. Each part plays a crucial role in the caster’s functionality and performance. Understanding these components helps in selecting the right casters and making informed decisions about maintenance and use. We hope this article provides valuable insights into the structure and function of furniture casters.
